STCUNIRAILS1U
StarTech.com 1U Fixed 19" Adjustable Depth Universal Server Rack Rails
TAA Compliant
|
StarTech.com
|
|
065030845526
|
|
EA
|
|
StarTech.com |
|
UNIRAILS1U |
|
http://www.startech.com
|
|
StarTech.com |
|
1U Fixed 19" Adjustable Depth Universal Server Rack Rails |
|

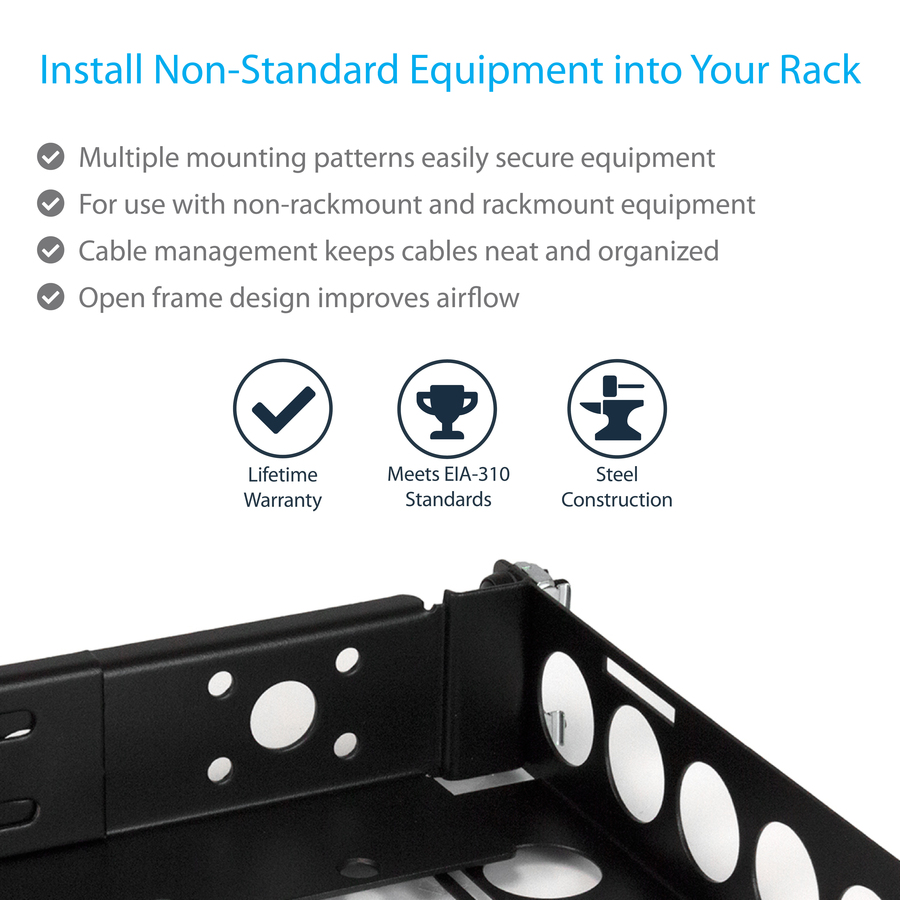

These 1U server-rack rails let you mount non-rackmount equipment such as desktop servers, networking equipment or KVM switches, into your 19" server rack without sacrificing 1U of rack space, like you would with a traditional shelf. The rack rails are also a great solution for mounting equipment with damaged rails or discontinued OEM equipment such as Dell™, IBM®, HP® or Apple servers that no longer have rack rails available. Turn non-rackmount equipment into 1U rackmount hardware These rack rails add rackmount functionality to your non-rackmount gear, by cradling your equipment in an open frame supported by three sturdy crossbars. You can mount your non-rackmount equipment by mounting the rails to your server rack and placing your equipment on the undercarriage. For equipment that already features mounting holes, the rails also feature multiple mounting patterns to secure your equipment, for an added level of security. Universal design mounts to almost any 19" server rack Adhering to the EIA-310 standard for 19" rackmount equipment, these mounting rails are universally compatible with 19" server racks. The depth is adjustable for a variety of rack sizes and configurations. Plus, there is a rear cable management panel that's removable for additional customization. Maximum durability To ensure your equipment is secure, these mounting rails feature cold-rolled steel construction. The durable design can support a weight load of up to 55 lb (25 kg). More from the Manufacturer |
|
1 Each |
|
Rack Rail |
|
Adjustable DepthCable Management |
|
1.7" |
|
18.3" |
|
18.9" |
|
5.80 lb |
|

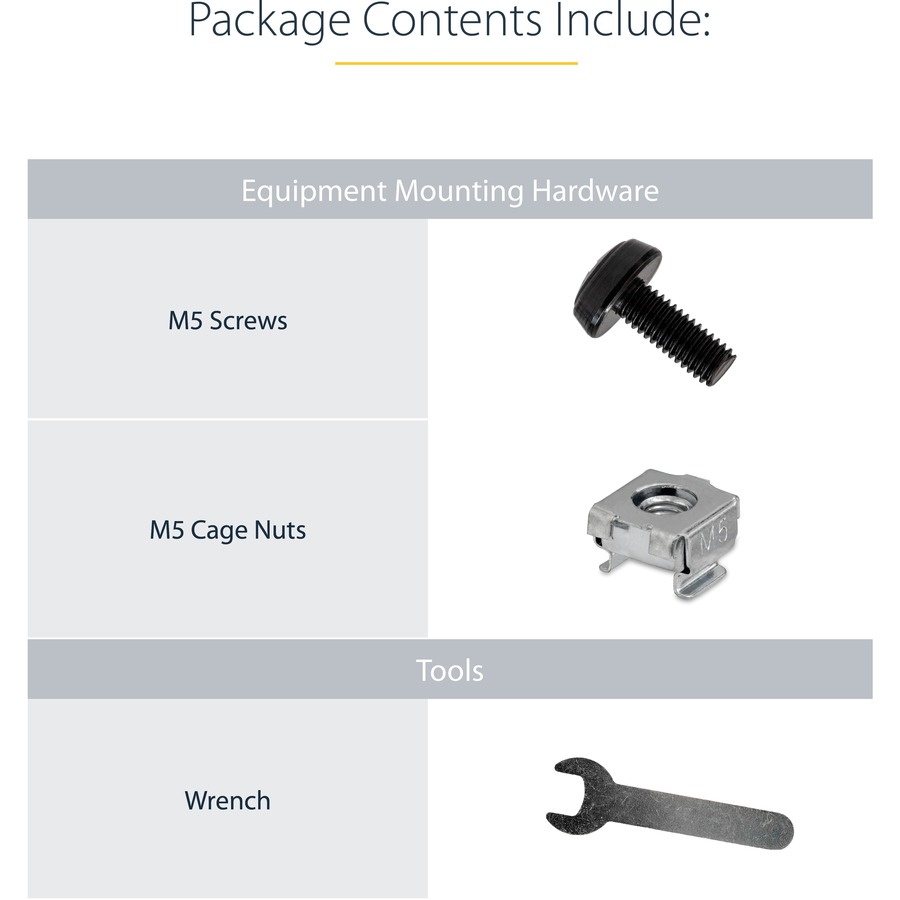

1 x Set Universal Rack Rails 8 x M5 Panel Screws 8 x M5 Cage Nuts 1 x M5 Wrench |
|
Mounting Height: 1UCross bars allow for mounting of equipment that can't span the 19" rack expanseThree-piece rail construction allows for a wide range, adjustable depth configuration to accommodate almost any size of rackUniversal design mounts to almost any 19" server, or other equipment for maximum mounting versatilityMaximum Mounting Depth: 41.5 inMinimum Mounting Depth: 16.54 in |
|
ULCE |
|
Yes |
|
Taiwan |
|
Yes |
|
Yes |
|
Restriction of Hazardous Substances (RoHS)Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
|
Lifetime |
-
VERSATILE FUNCTIONALITY: These 1U universal rack rails let you mount non-rackmount equipment into your 19" server rack; It is also great for mounting equipment with discontinued OEM equipment
-
MEETS INDUSTRY STANDARDS: These server mounting rails adhere to the EIA-310 standard for 19" rackmount equipment; The depth of the rack mount rails is also adjustable
-
STURDY CONSTRUCTION: To ensure your equipment is secure, this network equipment mounting rails feature cold-rolled steel construction; The durable design can support a weight load of up to 55lb (25kg)
-
TAA COMPLIANT: This TAA compliant 19in rack mount rails adheres to the requirements of the US Federal Trade Agreements Act (TAA), allowing government GSA Schedule purchases
-
THE IT PRO'S CHOICE: Designed and built for IT Professionals, these server-rack rails are backed for life, including free lifetime 24/5 multi-lingual technical assistance
